HANPOSE HPV1 Linear Guide Set | 100-500mm Linear Actuator Module with 17HS3401S Stepper Motor

Product Description

Description:
HANPOSE HPV1 Linear Guide Set Openbuilds V Linear Actuator 100-500mm Linear Module with 17HS3401S Stepper Motor
Specification:
Model: HPV1 Width or Diameter of Guide: 2060
Effective Travel: 100/150/200/250/300/350/400/500mm
Motor: 17HS3401S Stepper Motor Motor leads: 1m
Total lenght= Effective stroke+204mm
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser
engraving, Automation Equipment, Non-standard Equipment, Placement machine ect.
17HS3401-S Motor:

Model	17HS3401-S
Type	Hybrid
Phase	2
Step Angle	1.8??
Motor Size	42 x 34mm
Shaft	"D" shaft 21 x ??5mm
Outlet way	"4" plug line
Motor leads	Dupont line(1M)
Adapter drive	Two-phase step drive
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated Current	Resistance /Phase	Inductance /Phase	Holding Torque	Detent Torque	Inertia Of Rotor	Lead
	( ??)	(L)mm	(A)	(??)	(mH)	(N.cm)	(N.cm)	(G. cm2)	(No.)
17HS3401-S	1.8	34	1.3	2.4	2.8	28	1.6	34	4

General Specification:

Precision angle step	??5% (full step, no charge)
Resistance accuracy	??10%
Precision inductance	??20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20??)-(+ 50??)
Insulation resistance	100M?? Min, 500VDC
Insultion Force	500VAC for a minute

Package Included:

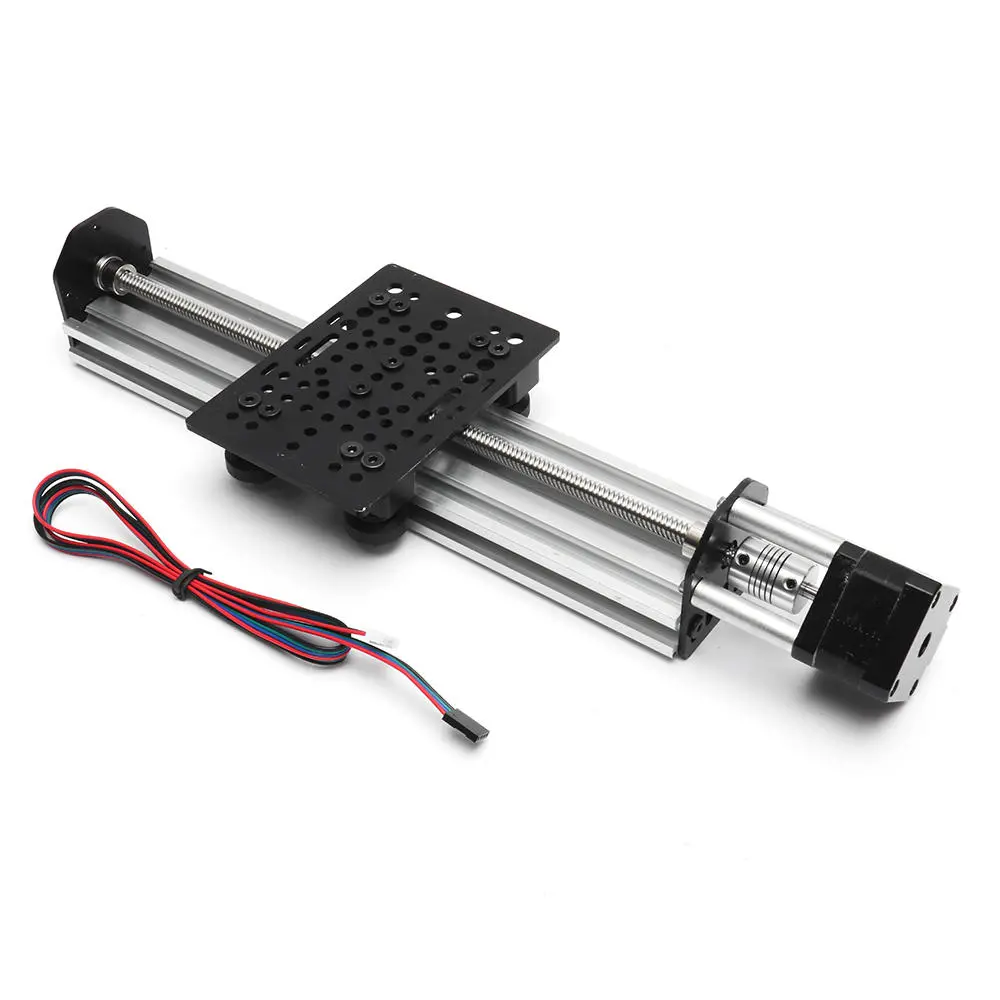

1 X HPV1 V Linear Actuator Set 1 X Motor leads(1m)
