Machifit CNC Solid V Wheels for V-Slot Linear Rails | Aluminum Extrusion Accessories

Product Description

Description:

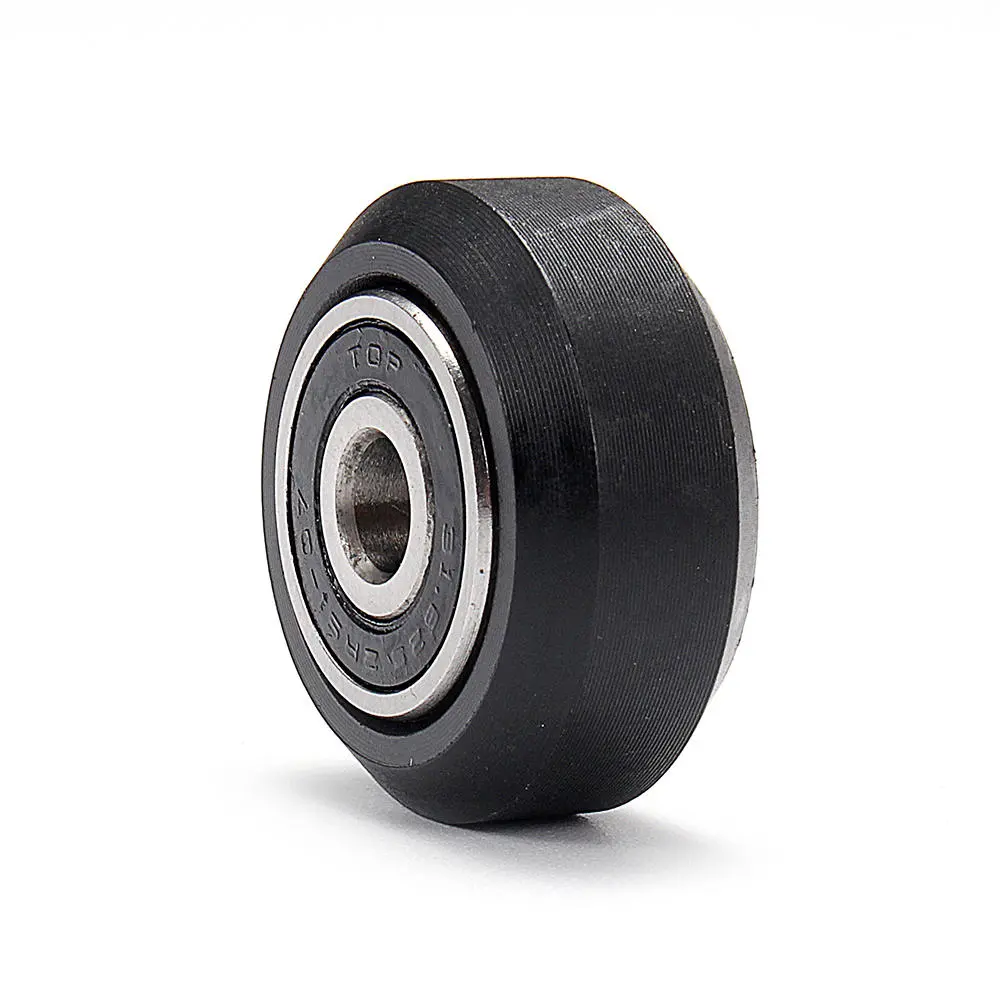

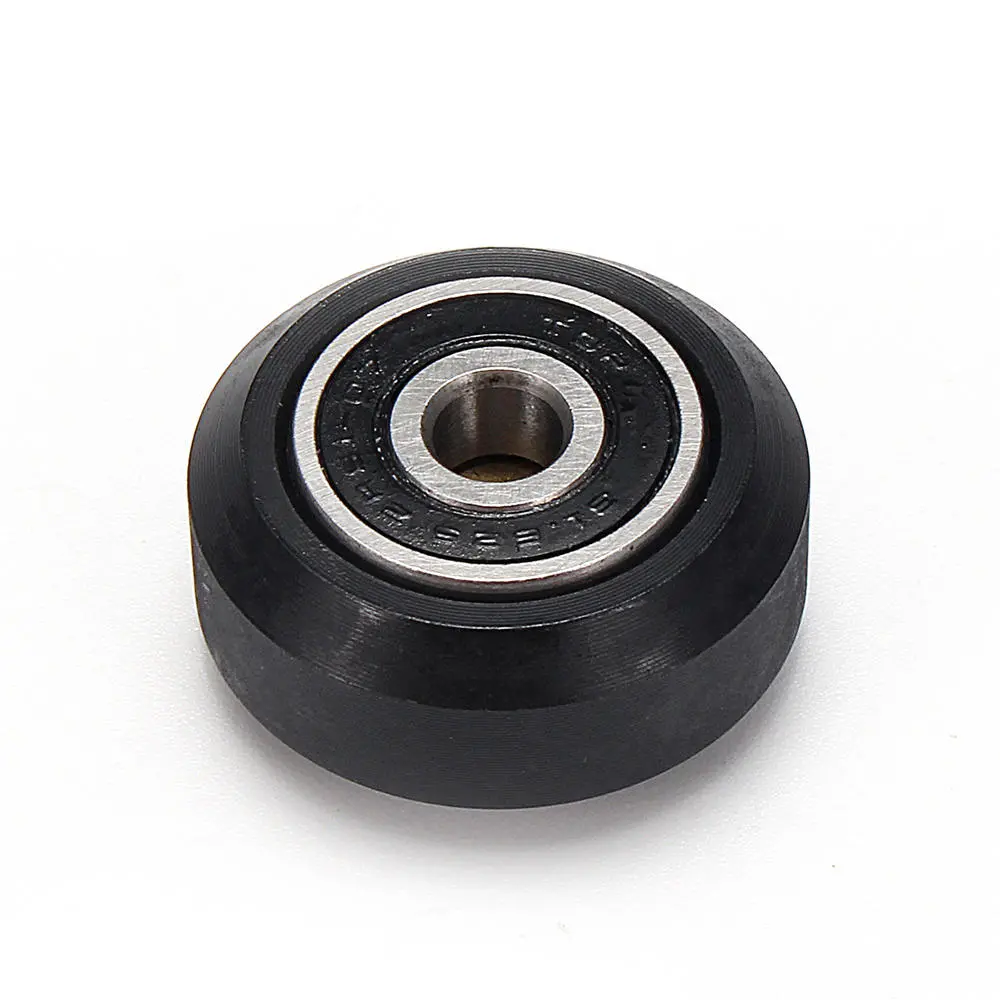

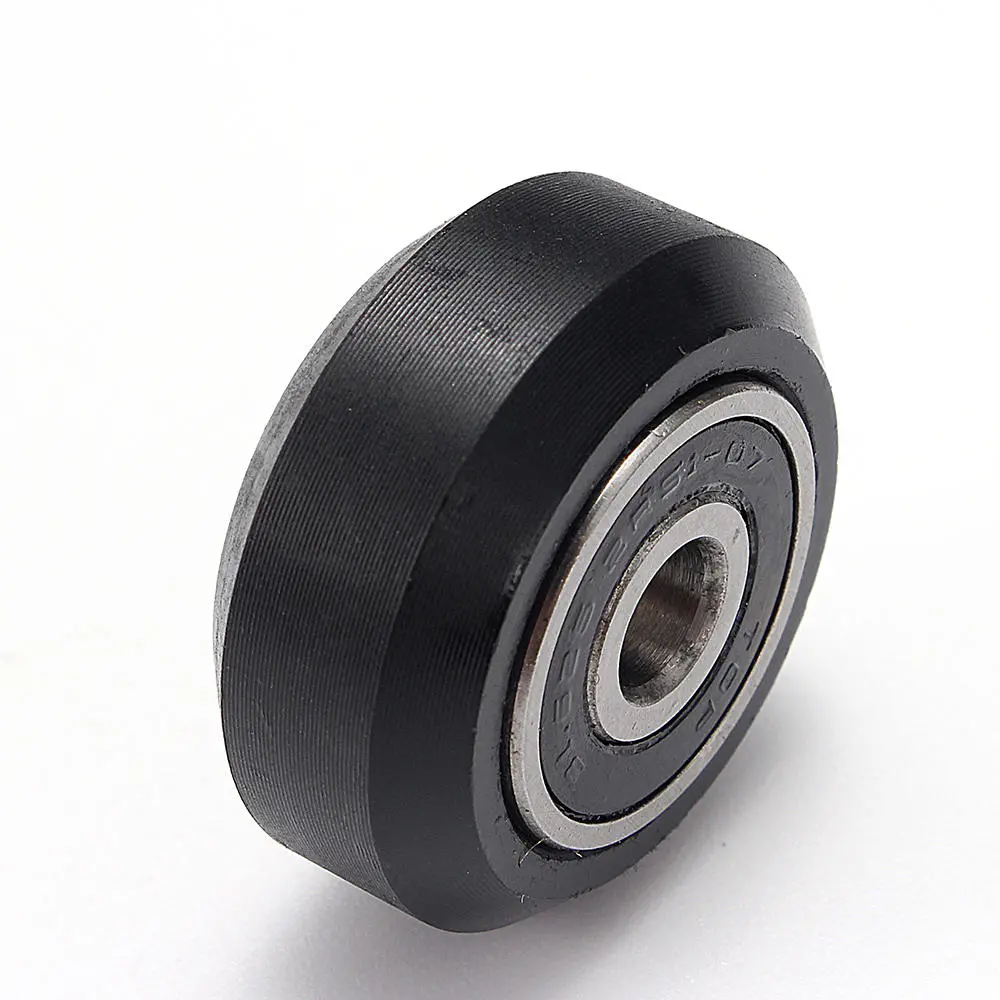

Machifit CNC Solid V Wheel Kits for V-slot Linear Rail System Aluminum Extrusions Profile Accessories
Specification:

Material	Delrin (black)
Dimensions	23.90mm OD x 16mm ID x 10.23mm thick
Rockwell Hardness	M80
Compressive Strengh	63Mpa
Application	3D printer, cnc rounter, etc
Each Wheel Kit Includes	1 x solid V wheel 2 x ball bearings - 625 2RS 2 x 5mm precision shim 1 x lock nut with nylon insert

Features:

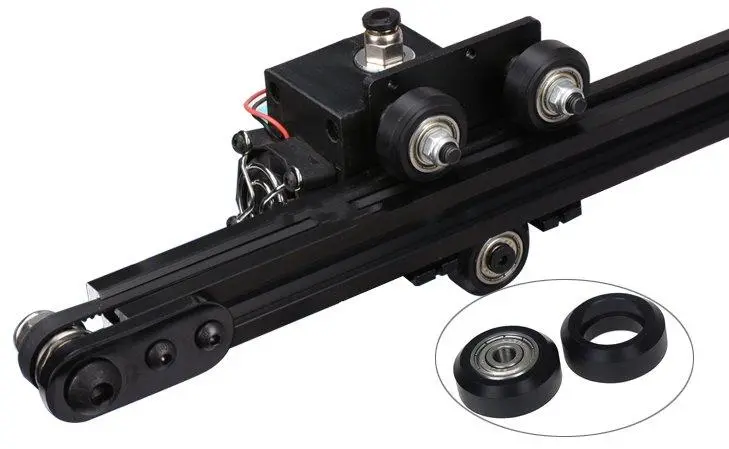

Solid V wheel is a strong wheel that resists deflection and distributes loads. It is usually used when heavier loads are required and will compress less than the dual V wheel. If many of these wheels are added to a gantry plate it will allow for an even distribution of the load. The solid V wheel also has improved performance when used in conjunction with a belt and pinion system because it provides a flat surface for the belt to ride on.
Package Included:
1 x Solid V Wheel
More Details:
