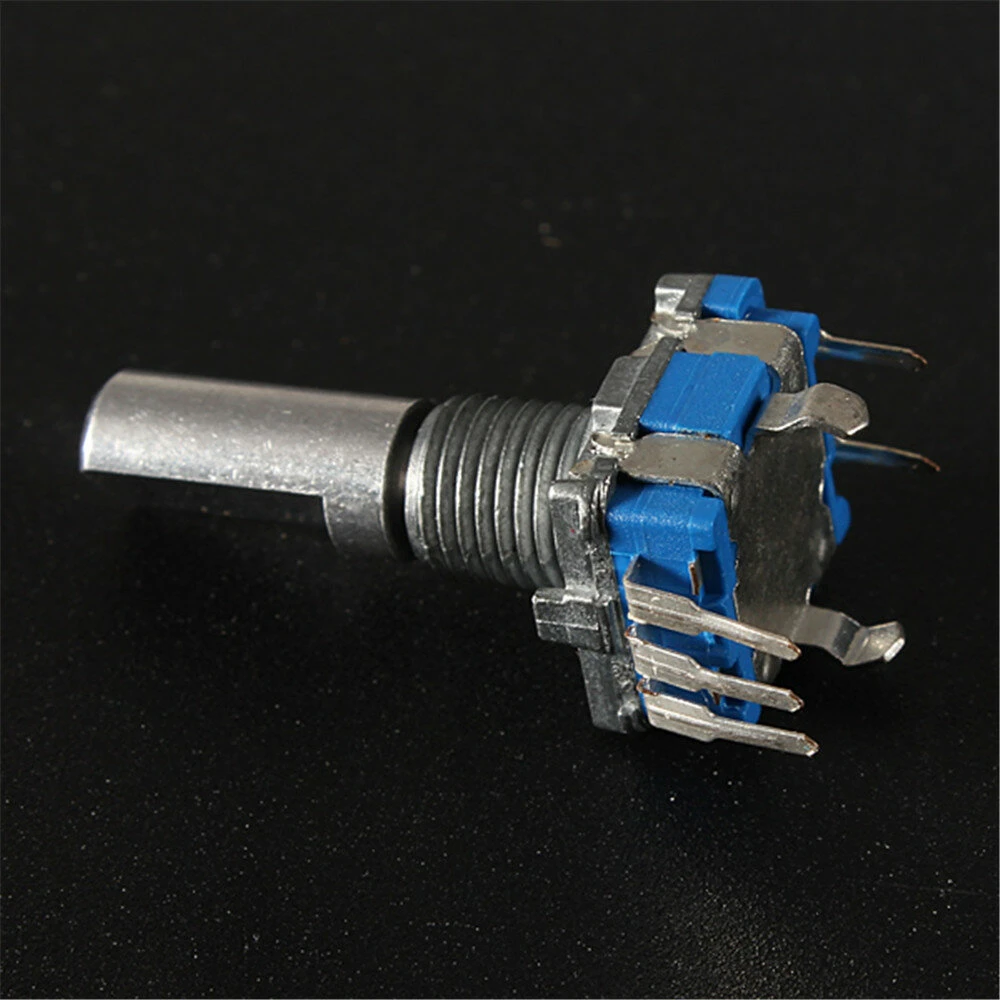

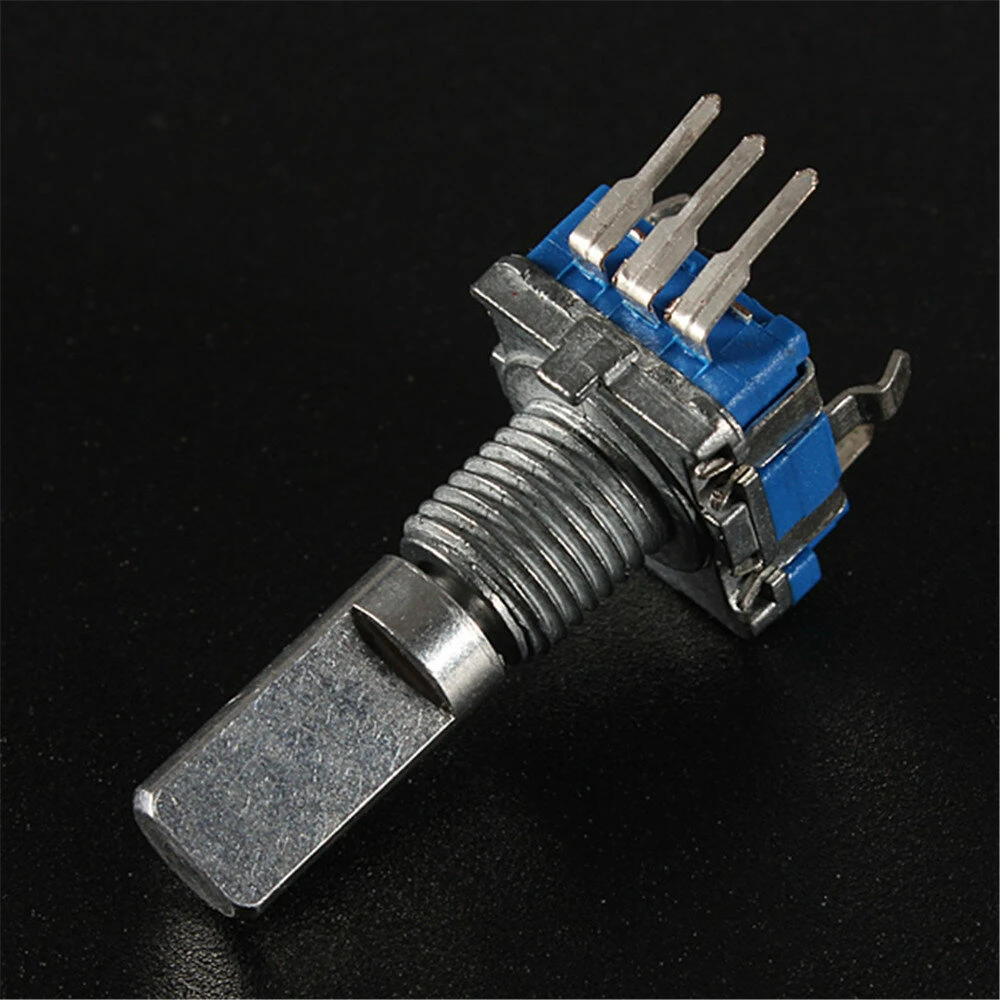

30Pcs Rotary Encoder Switch Kit - 15mm with Key & 2 Bit Gray Scale Micro Switch
$19.00
$23.02
-17% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:30Pcs 15mm Rotary Encoder Switch with Key Switch with 2 Bit Gray Scale Micro Switch Specifications:| Product Name | Rotary Encoder Switch |
| Pulse | 20 times/round |
| Rotary Shaft Length | Approx. 15mm |
| Shaft Diameter | Approx. 6mm |
| Size (L x W) | Approx. 15 x 11mm |
| Output | 2-bit gray code |
| Closed Circuit Resistance | 3 ohms maximums |
| Max. Rating | 10 mA @ 5 VDC |
| Operating Temperature Range | -30 to 70 degrees celsius |
| Storage Temperature Range | -40 to 85 degrees celsius |
| Rotational Life | 30000 cycles minimum |
| Switch Life | 20000 cycles minimum |

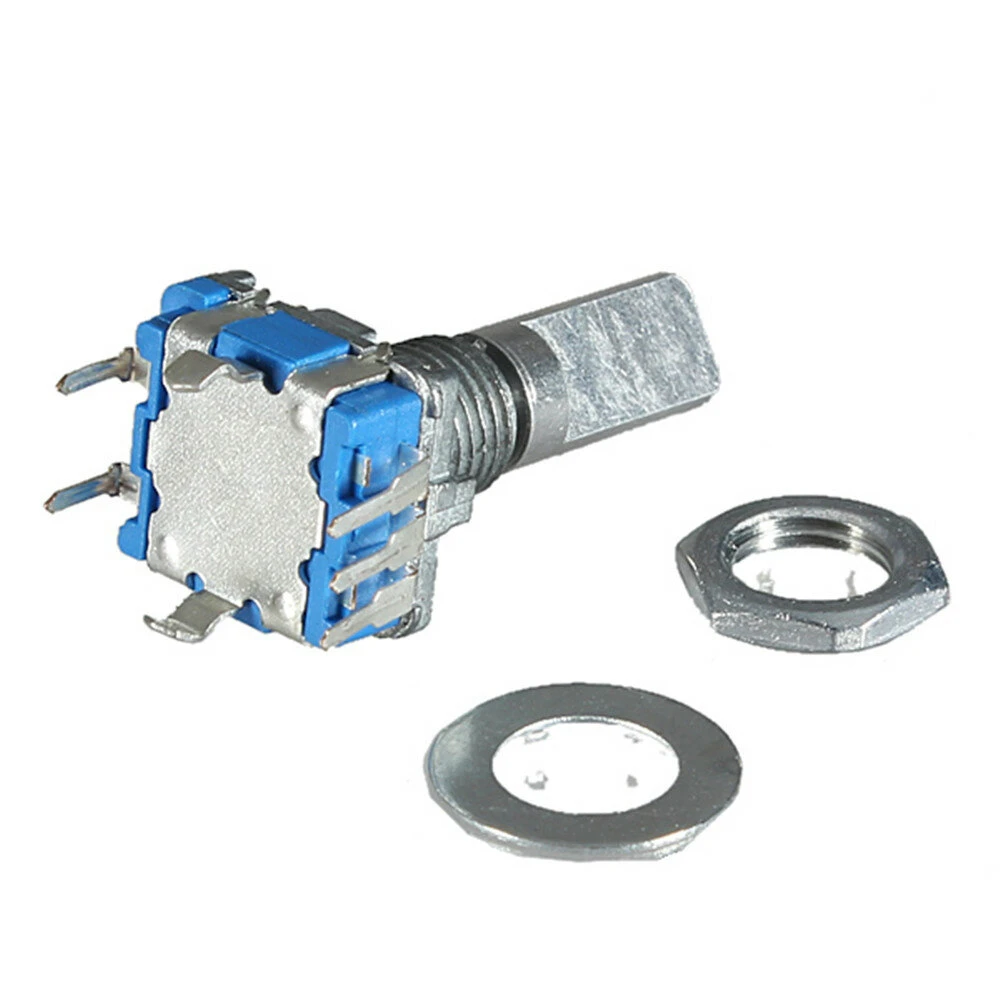

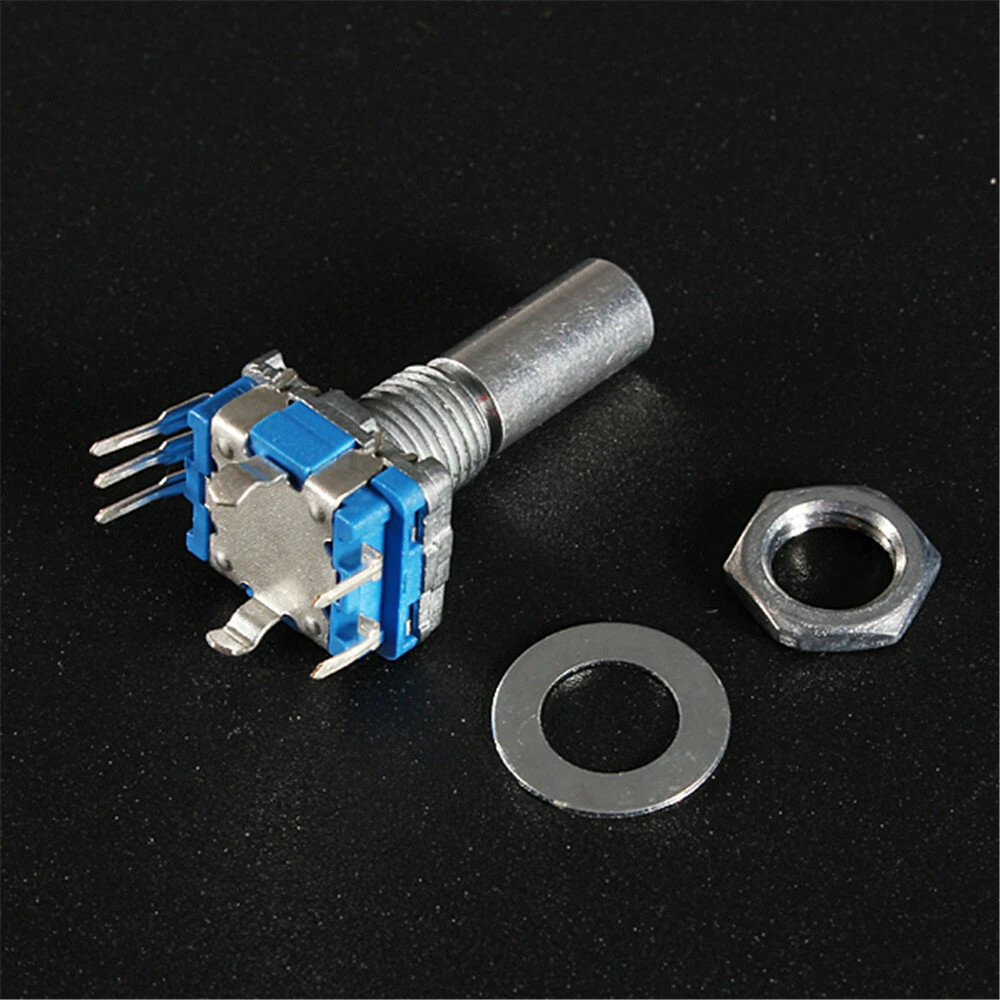

Package Included:
| 30 Pcs x | Encoder Switch |
| 30 Pcs x | Nut |
| 30 Pcs x | Gasket |
