PD 65W Mini Hot Plate Preheater - OLED Display | PCB Welding & Rework Station

Product Description

Description:

--Ultra mini sized intelligent constant temperature heating table

--Eliminate redundancy and retain sufficient effective heating area, greatly saving energy consumption and heating time --Efficient heating area, reduced energy consumption, widely applicable fields, screen display and temperature control --Concentrate preheating of operating parts to reduce damage to nearby components --USB Type-C interface+PD protocol for faster heating Product parameters:

Input interface: Type-C Power supply: PD 65w 20v 3.25A (recommended for PD65w) Temperature range: 0 ?? C~350 ?? C (the lowest temperature is the ambient temperature, which can only be raised but not lowered) Shell: High quality 3D printing shell, no layering Product size: length: 5.6cm, width: 5.6cm, height: 3.5cm Operating instructions: Double button simultaneous pressing: heating or stopping heating Double key long press to enter the menu interface or exit Double key press to confirm Attention: It is recommended that the temperature not exceed 250 ??

Package Included:

1 X Heating table X1

Common Q&A: Q: How many volts does the power supply require? Answer: A charger that supports the PD protocol with a voltage of 20V 3.25A is required, and theoretically it can support the PD protocol with a voltage of 20V Q: Why does the heating start with a black screen and restart? Answer: This issue triggered the charger protection and requires replacement with another charger or data cable, most of which caused the charger model to be recorded

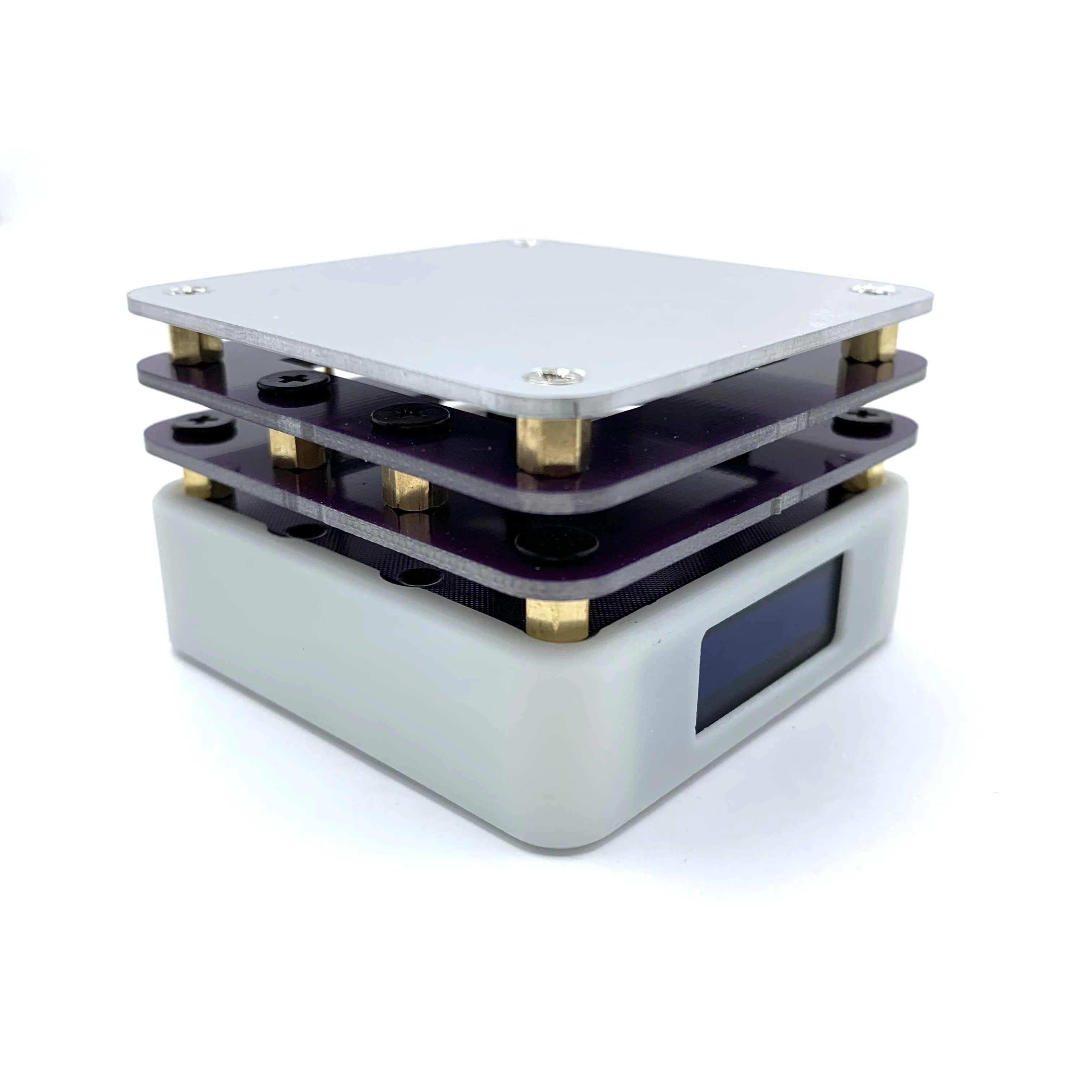

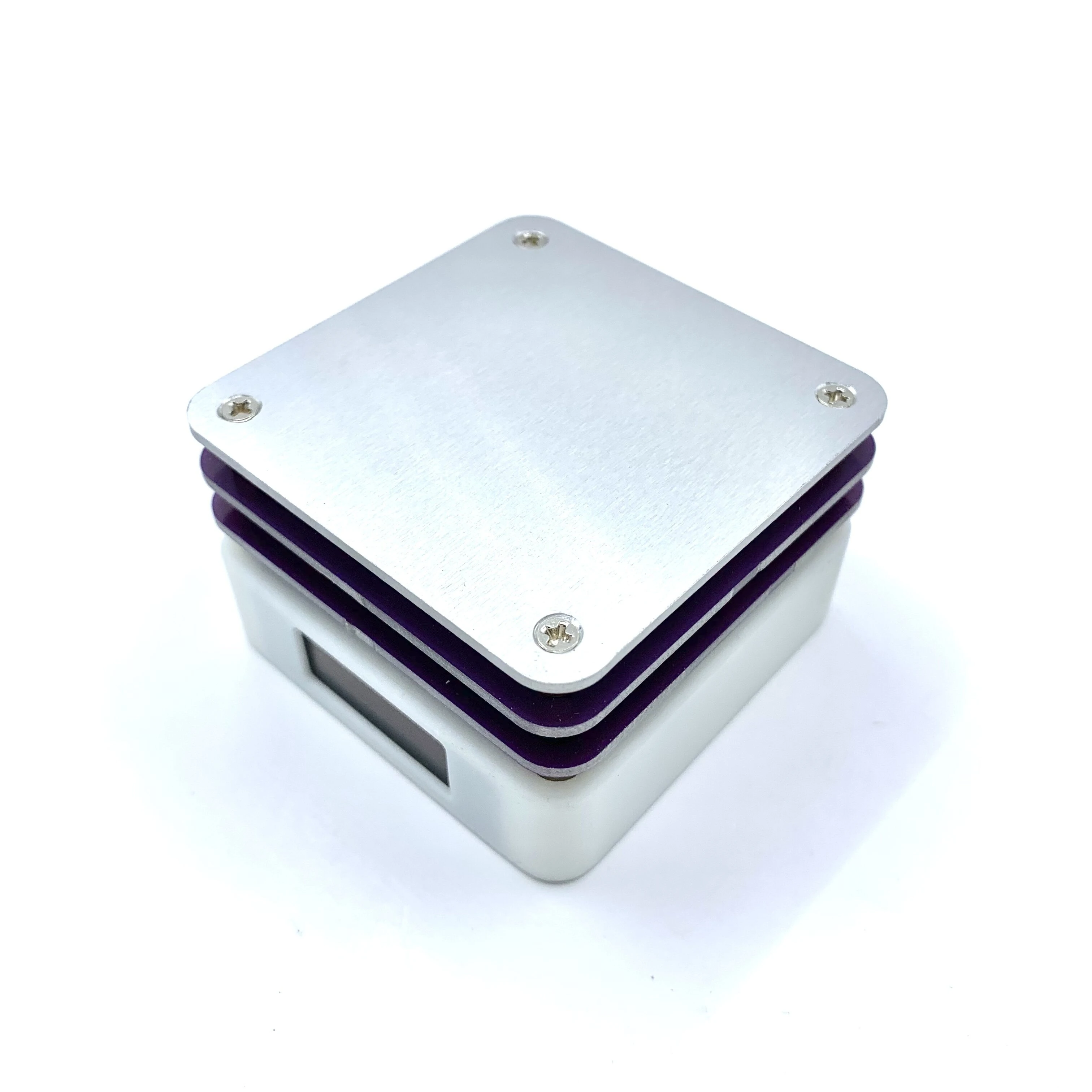

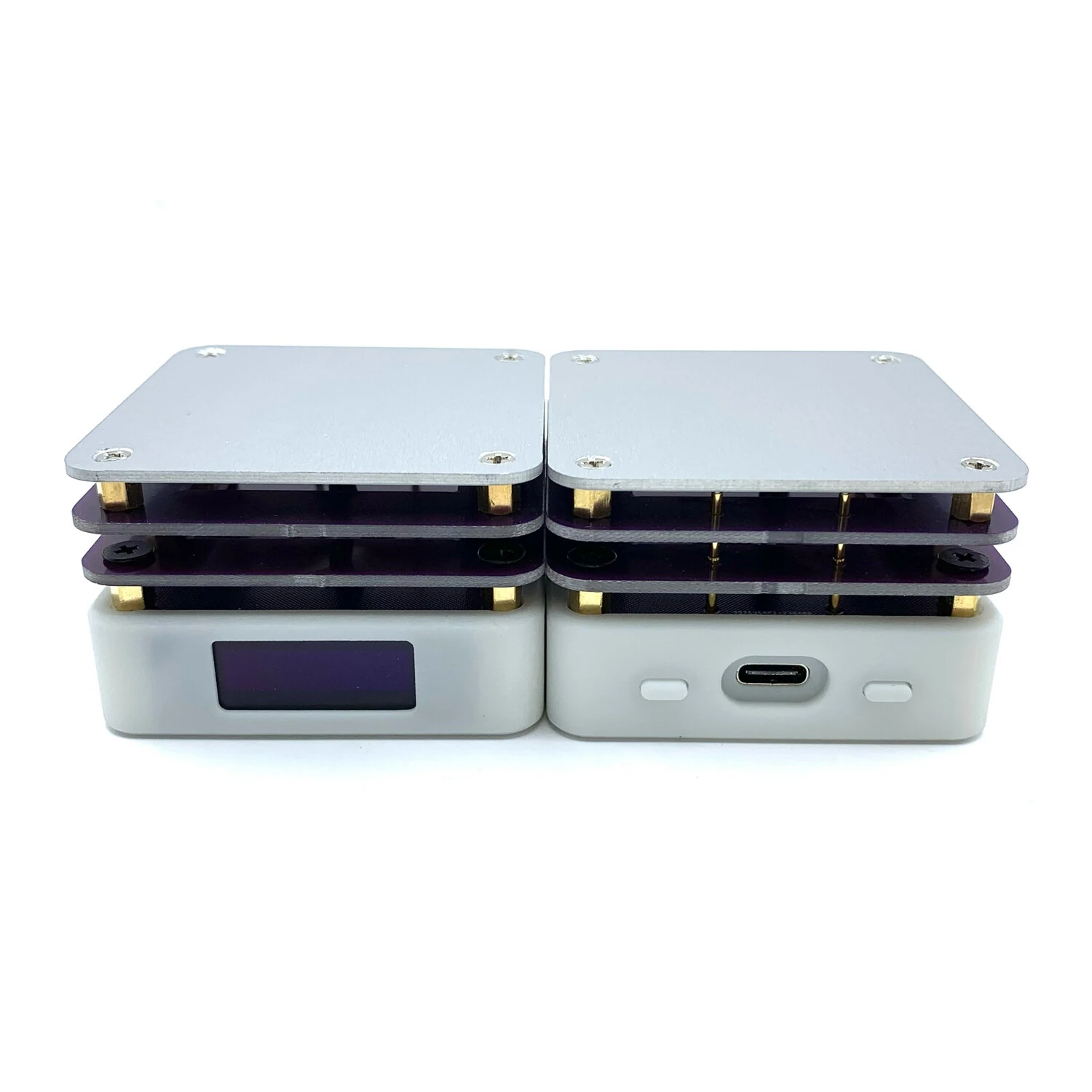

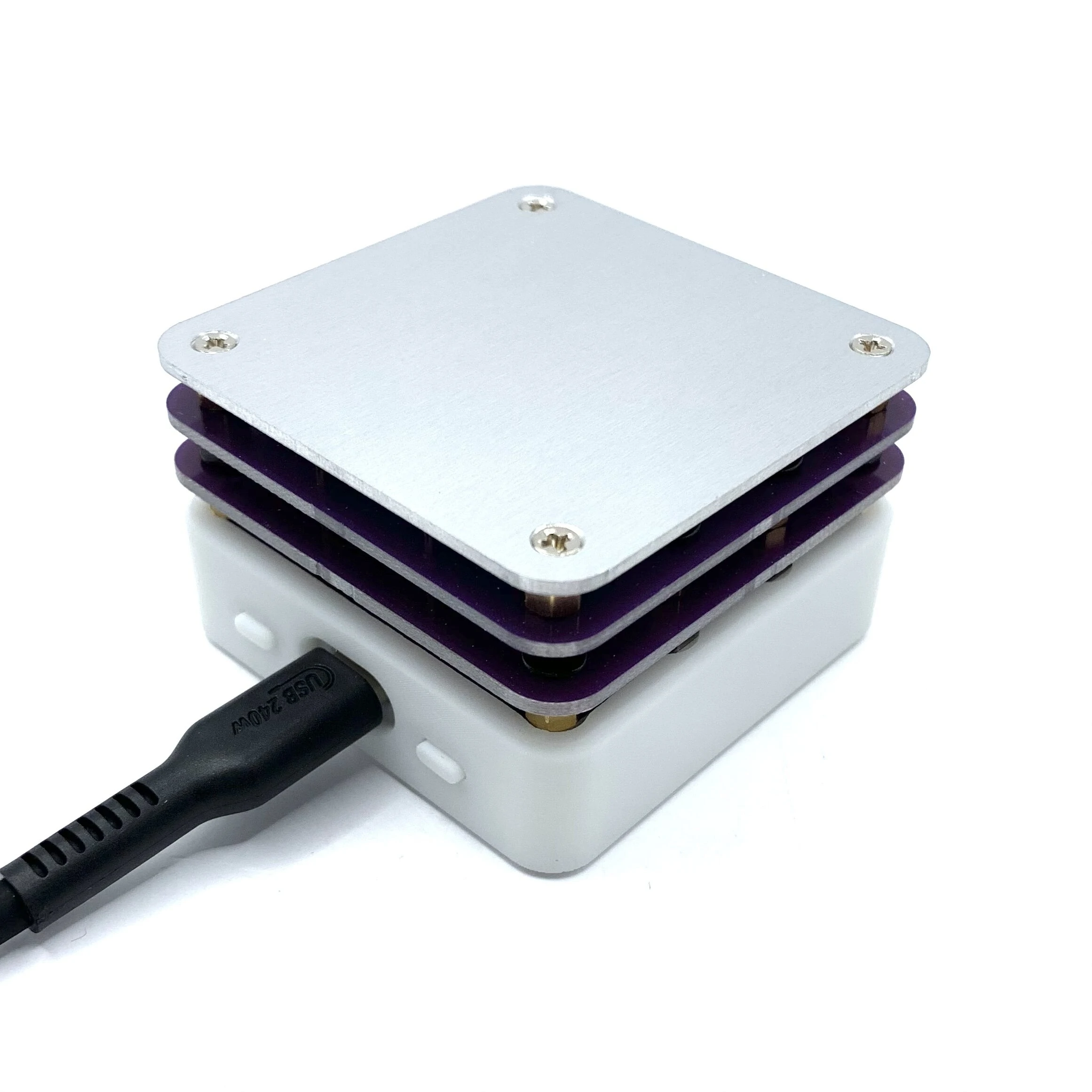

Detail Pictures:
