RS485 4-20mA Pulse-Type Wind Speed Sensor | Three-Cup Transmitter | Wind Detection Instrument
$60.00
$73.58
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

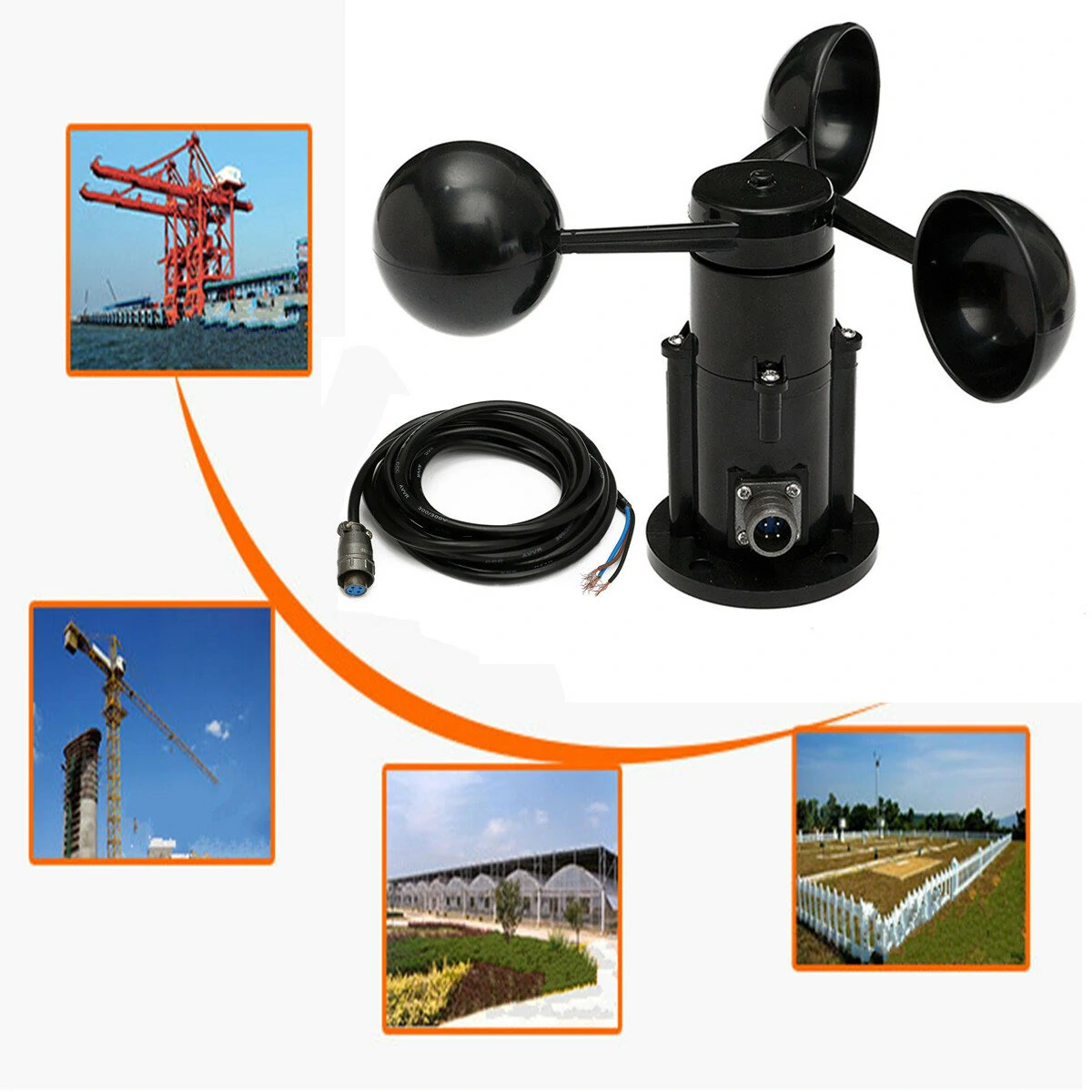

Features:1. The bottom outlet design is adopted, which has higher rain and snow resistance.2. The equipment has a practical all-aluminum shell, high strength and high weather resistance.3. Waterproof plug-in cable, convenient for connection, avoiding misconnection of cables.4. Stable base mounting hole design.5. Wide range of applications, wind speed and direction measurement in power plants, weather stations, navigation and aviation and other fields.
Specifications:
- Equipment power supply: 5~30V DC
- Working environment: -20??~+60??, 0%RH~80%RH
- Wind speed accuracy: ??(0.2+0.03V) m/s V represents wind speed
- Measuring range: 0~60m/s
- Resolution: 0.125m/s (1m/s=8 pulses)
- Starting wind speed: ??0.2m/s
- Response time: ??0.5s
- Output signal: pulse output (PNP/NPN/NPNR)
- Load capacity: ??100mA(PNP), ??100mA(NPN)
Package Included:
1 x Wind Speed Sensor
