Micsig DP7000 Differential High Voltage Probe | 7000Vpk | Compact Design

Product Description

Features:

1. Micsig DP7000 is a differential high voltage probe, perfectly designed to measure voltages up to 7000Vpk safely and accurately.

2. Featured with overload indication, it provides both LED flash and buzzer reminders to enhance your safety during operation.

3. Compact control module with specified dimensions, easy to operate and transport, making it suitable for professionals and DIY users alike.

4. It includes an input cable and output cable of ideal lengths, making the measurement simple and convenient.

5. Engineered to withstand and maintain stable performance under different environmental conditions, making it reliable for high voltage measurement tasks.

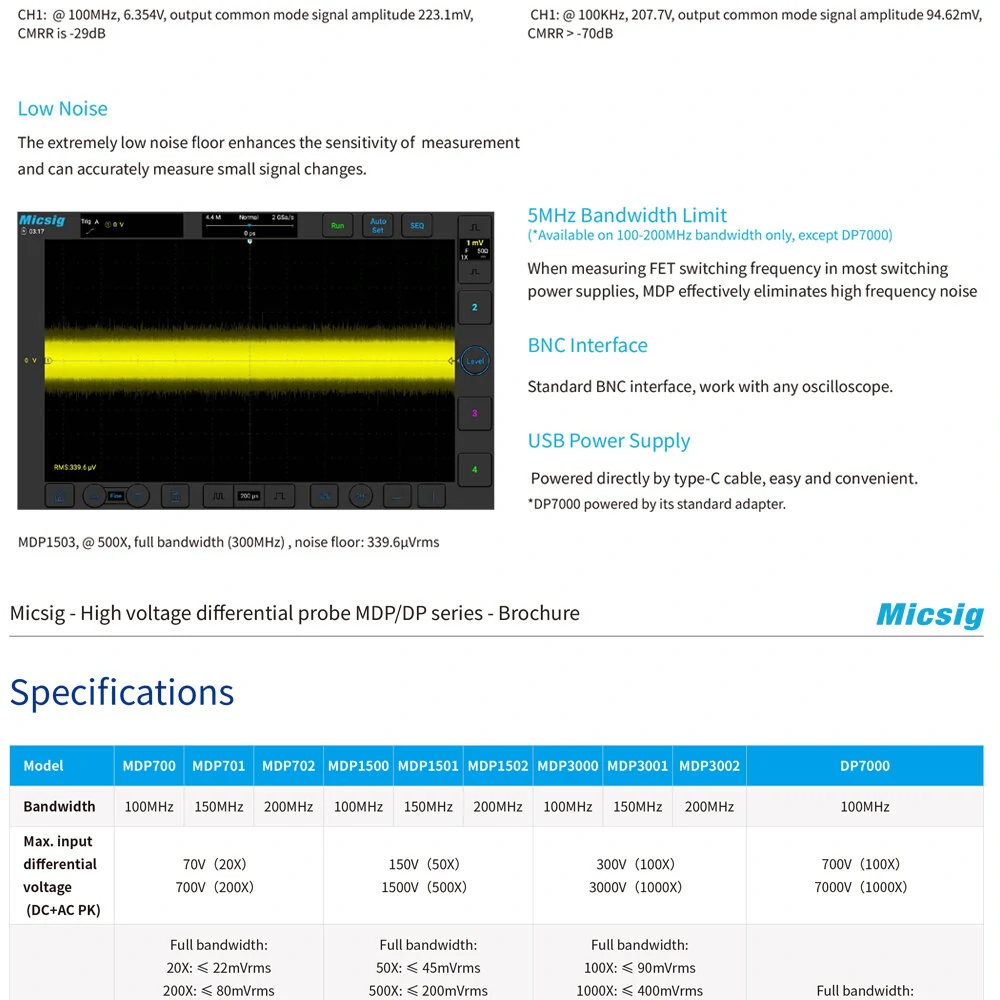

Specifications:

- Voltage Measurement Range: Maximum 7000Vpk

- Accuracy: ??2%

- Overload Indication: LED flash, buzzer

- Control Module Dimensions: L: 91mm, W: 33mm, H: 15mm

- Signal Box Dimensions: L: 100mm, W: 36mm, H: 20mm

- Input Cable Length: 8cm

- Output Cable Length: 120cm

- Temperature Range: Working: 0???-40??, Non-working: -30"??-70"??

- Humidity Range: Working: 5~ 85% RH (0??? ~40???), Non-working: 5% -85% RH (? 40???) ; 5%-45% RH (40??-70??)

- Optional Plug Type: EU/US Plug

Package Included:

1 x Micsig DP7000 Differential High Voltage Probe (Plug Type As Your Choice)

1 x Control Module

1 x Input Cable

1 x Output Cable
